Wide Format Printer Features

The Fastest imagePROGRAF Printer. Ever.

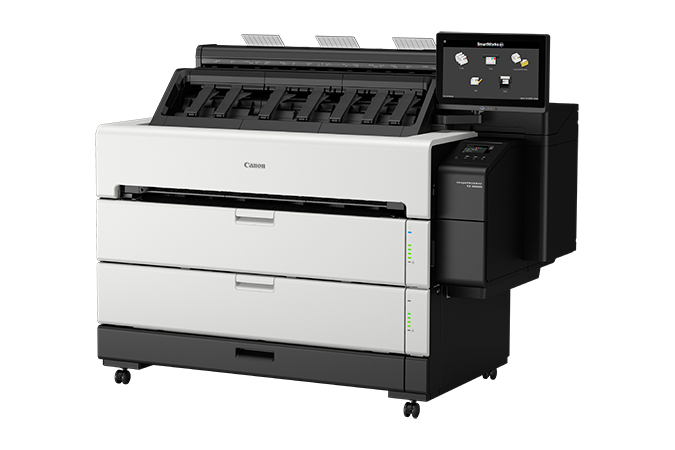

A 5-color, 36-inch aqueous inkjet Scan-To-Copy/File/Share production solution for high productivity and efficiency for the low-end LED and high-end inkjet market. The TZ-30000 MFP Z36 achieves the fastest printing speed of any imagePROGRAF printer to date at up to 4-D size prints per minute. Designed with many “Canon First” technologies built in such as twin carriage motors, an integrated top stacker that utilizes an air flow system and a dual roll media system with intelligent media handling. This MFP includes a production CAD printer, Z36 scanner and intuitive system controller making it a powerful addition to Canon’s portfolio of large format printers perfect for scanning maps, drawings and renderings.

Scan-to-/File/Share Solution

The TZ-30000 MFP Z36 was built with production, efficiency and versatility in mind with a System Controller that has an all new intuitive GUI design.

A robust production CAD system, the imagePROGRAF TZ-30000 MFP Z36 includes:

TZ-30000 36-inch Printer
Z36 Scanner
15.6" System Controller
Top Output Stacker

SmartWorks MFP Software

With an all-new GUI, the SmartWorks MFP software brings an updated look and feel that enables the operator to easily execute large-format scanning and copying from the touchscreen system controller. With a simple to use interface and "scan-it-once" ability, this software allows for efficient batch scanning and helps to create high quality scanned images. You can scan to PDF, TIFF and JPEG file formats. SmartWorks MFP software is now more efficient than ever before.

Z36 Scanner

The light weight and compact Z36 scanner incorporates a SingleSensor Technology Assembly3, which helps provide consistent and better color accuracy with more detail in the shadows and highlights than a staggered CIS array scanner.

Fast Print Speeds

The TZ delivers up to 4 D-sized prints per minute and up to 244 D-sized prints per hour via fast processing speeds with the implementation of parallel processing combined with increased carriage and cutter speeds. These new technologies allow for the 1st print out time to be is as fast as 19 seconds.

RICOH Intelligent Support is within your grasp*

Top Output Stacker

Stack up to 100 ARCH E sheets on the TZ Output Stacker. Canon's advanced airflow system helps reduce paper jams and keeps prints neatly in place. The sheets are delivered face-down for privacy and printed material can then be easily retrieved from the front of the printer saving valuable office space.

Wi-Fi Compatible

Printing jobs quickly is critical on the work site and in the office. The Wi-Fi connectivity can transfer technical drawing files and help speed up your workflow- perfect for high-volume printing. No Wi-Fi router is needed, which can provide greater freedom during installation. Wi-Fi connectivity is standard for the imagePROGRAF TZ Series printers.

500GB Hard Drive

A built-in 500GB hard drive within the printer can increase productivity by relieving workload from the host computer, while providing a large capacity for print job data storage and retrieval.

Main Unit Specs

Printer Type	5-Color 36-inch Printer
Number of Nozzles	Total: 15,360; MBK: 5,120 nozzles; C, M, Y, BK: 2,560 nozzles each
Nozzle Pitch	1200 dpi, Non-firing nozzle detection and compensation
Print Resolution (Up to)	Print Resolution (Up to): 2400×1200dpi (Max)
OS Compatibility	Windows® 7, 8.1, 10 (32/64bit); Windows® Server 2008 R2, 2012, 2012 R2, 2016 (64bit); MacOS 10.12.6 and later
Standard Interfaces	USB 2.0 High-Speed; 10/100/1000 Base-T/TX
Ink Droplet Size	5 picoliter
Ink Capacity	330ml or 700ml per color
Ink Droplet Size	Pigment Ink
Color Set	Matte Black, Black, Cyan, Magenta, Yellow
Buffer Ram	128 GB (Virtual) 2 GB (Physical)
Hard Drive	500 GB
Media Width	Cut Sheet - 8” - 36”; Roll Feed - 8” - 36”
Media Thickness	0.07-0.8mm (2.8-31.4mil)
Maximum Roll Print Length	Roll Feed - 59' (18 meters)
Maximum Media Roll Diameter	6.9” (175m)
Borderless Printing Width	All sizes
Paper Feed Method	Roll Feed: Two Roll, Front-loading; Cut Sheet: Front-loading
Languages	SGRaster, HPGL/2, HP-RTL, PDF, JPEG
Noise Level Approx	Operation: 52 dB (A) or less; Standby: 35 dB (A) or less; Acoustic Power: 7.0 Bels or less
Physical Dimensions	47” x 61” x 38” (Main Unit + Paper output support + Top output guide)
Weight	approx. 456 lbs
Power Source	AC-100-240V (50-60Hz)
Power Consumption	Maximum: 157W or less; Standby 2.0W or less; Power Off: 0.3W or less (Compliant with Executive Order)
Operating Environment	Temperature: 59°-86° F (15°-30° C); Relative Humidity: 10-80% (No Condensation)
User-replaceable items	Print Head (PF-06)Maintenance Cartridge (MC-30)Ink Tanks (PFI-340/PFI-740)
Software Available	Accounting Manager, Canon Print Service, Device Management Console, Direct Print Plus, Free Layout Plus, Canon Printer Driver, Media Configuration Tool, PosterArtist Lite for Windows, Optimized Driver for AutoCAD, CPP Publisher Select, CPP Driver Select

Scanner

Scanner Type	Contact Image Sensor (CIS) technology
Scan Accuracy	+/- 0.1%
Speed	13 ips monochrome, 6 ips color
Optical Resolutions	1200dpi (Adjustable from 100 dpi to 2,400 dpi)
Max. Resolutions	9600dpi interpolated
Max. Document Size	Width: 38 inch document width (36 inch image width); Length 315” (JPG or PDF); 598” (TIFF)
Thickness	0.04in (1mm)
Standard Interface	USB 3.0 (PC connector compatible with USB 2.0 and USB 3.0 sockets)

Direct Print Plus (DPP)

Batch print files and monitor the status of more than one device for extremely efficient production printing. Easily share and/or print, PDF, TIFF, JPEG, HP-GL/2 files and .cpfx PosterArtist files through the user-friendly interface. In addition, you can set-up hot folders on your desktop by clicking the Shortcut Print feature. DPP allows you to simply drag and drop files for on demand printing with improved rendering speeds that are 60% faster than Canon’s Direct Print & Share. You can even set up multiple folders, each with their own customized settings, allowing for multiple jobs to be run with ease. DPP obtains the essential information such as media width and remaining amount of media on the roll helping to streamline the printing process.

Additional features include:

Easily collate sets
Displays job progress
Nest images
Print file name, date and time on separator sheets

Canon Production Printing (CPP) Driver Select

Have multiple Canon high-volume production printers? Print to the imagePROGRAF TZ, PlotWave, or ColorWave machines all from one printer driver.

Canon Production Printing (CPP) Publisher Select

For flexible printing capabilities, the imagePROGRAF TZ Series can be printed to from CPP Publisher Select. You can manage printer status, ink and media levels and receive warnings when ink is running low or the media is empty. This software also has dual printer support, ability to view printer features all on one screen, and templates you can create for frequently used job settings.

TZ Printer Driver

The TZ Printer Driver allows users to print to any imagePROGRAF TZ Series device, without the need to install additional drivers for each model. This helps make it a hassle-free installation process for multiple devices within the same environment.

Accounting Manager

Accounting Manager software serves as a powerful feature that can help users accurately manage printing costs and other information that is increasingly important in today’s economic environment.

With the Accounting Manager software you can track how much ink and paper is being consumed when printing in large format jobs. Costs can be assigned to ink and paper to determine expenses based on your own "Cost of Goods". Each individual ink tank and each paper type can have its own cost associated to it. The user can also input a variable cost that will be added to the total of the print cost. The data is exportable to a .csv format for Microsoft Excel® so the data can be used for billing purposes. This feature will allow you to determine the cost of each print based on your actual cost.

AutoCAD Optimized Printer Driver

This specialized driver is compatible with a variety of AutoCAD software products and helps enable optimal printing productivity and reliability from the AutoCAD software. The module has a user-friendly interface that includes familiar features such as free layout, test printing, and 1200 dpi rendering. This module is automatically loaded when printing is attempted from AutoCAD, helping to ensure a smooth workflow with optimal printing results each time.

Quick Utility Toolbox

This is the portal to accessing all of the Canon printer software and tools.

Device Management Console

This software allows users to continually monitor information such as the printer status and colors being used to print. It also allows printer administrators to centrally control multiple networked printers at once. This utility software displays the acquired printer information in a neat list for easy visibility. Printer administrators can be notified via email when an error or warning occurs. No more hassles to get to an installation site of a printer to check on the amount of ink remaining. Printer administrators can now simply check the amount of consumables remaining for networked printers by operating DMC software from their own personal computer. You can monitor the status of up to 50 TZ Series printers!
