Wide Format Printer Features

Color Wide-Format Printing for Real-World Business Needs

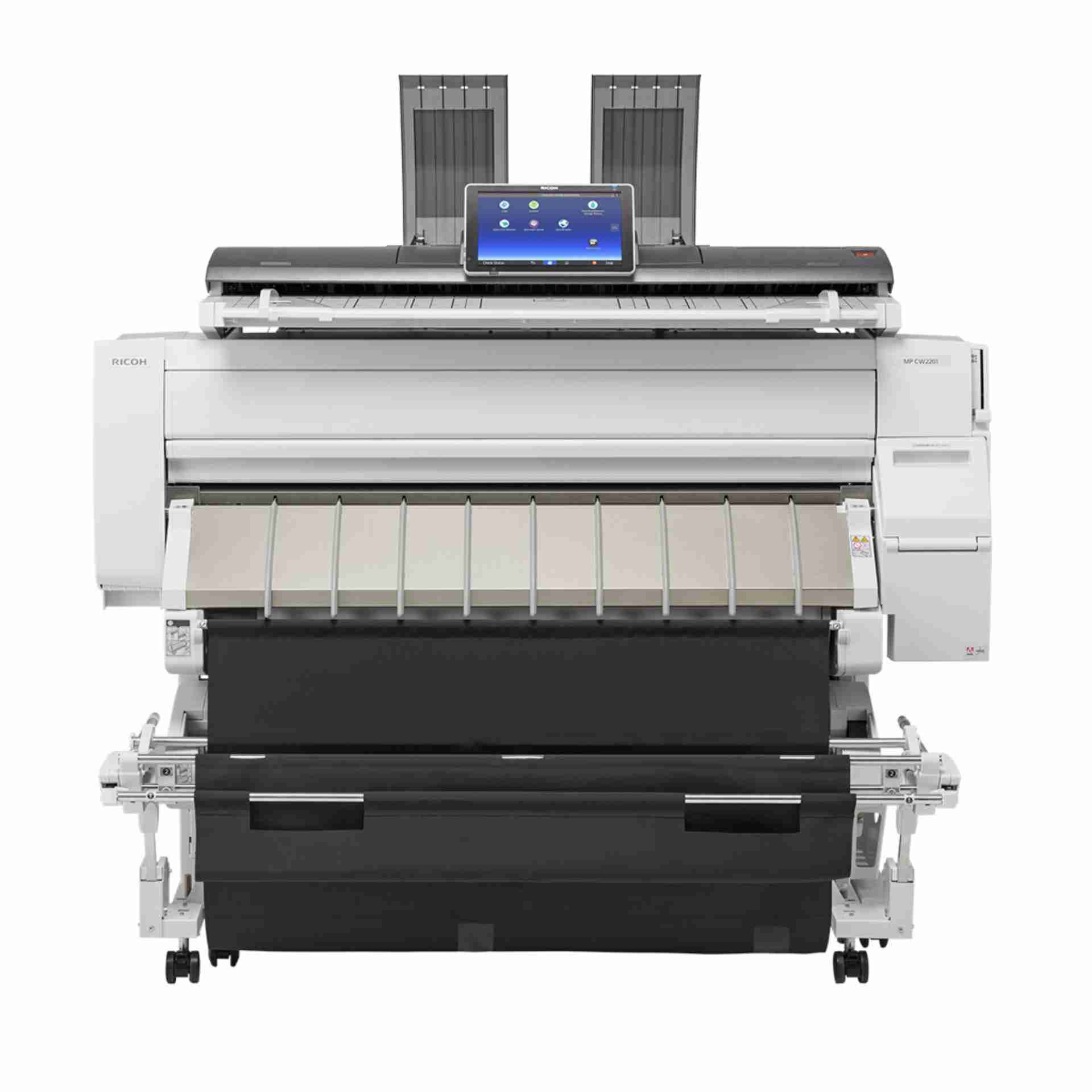

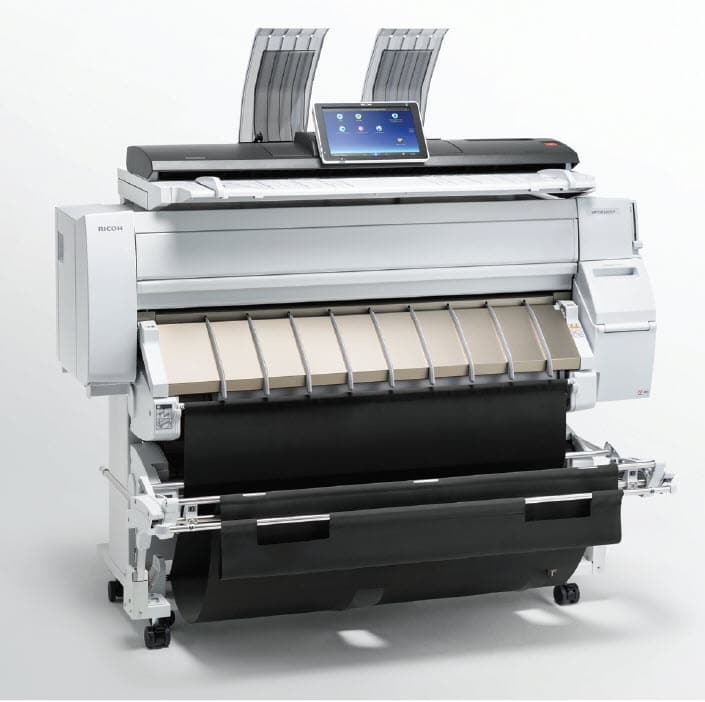

The RICOH MP CW2201SP Wide Format Color Inkjet Printer provides a smarter way to produce and share your work. Collaborate easier with full multifunction capabilities, mobile support and precise color technologies, all packed into a single compact footprint. Powered by an innovative Smart Operation Panel and intuitive user interface, the MP CW2201SP delivers the flexibility needed for how — and where — business happens today — on the network, in the cloud and on-the-go.

Smarter Controls to make Work Easier

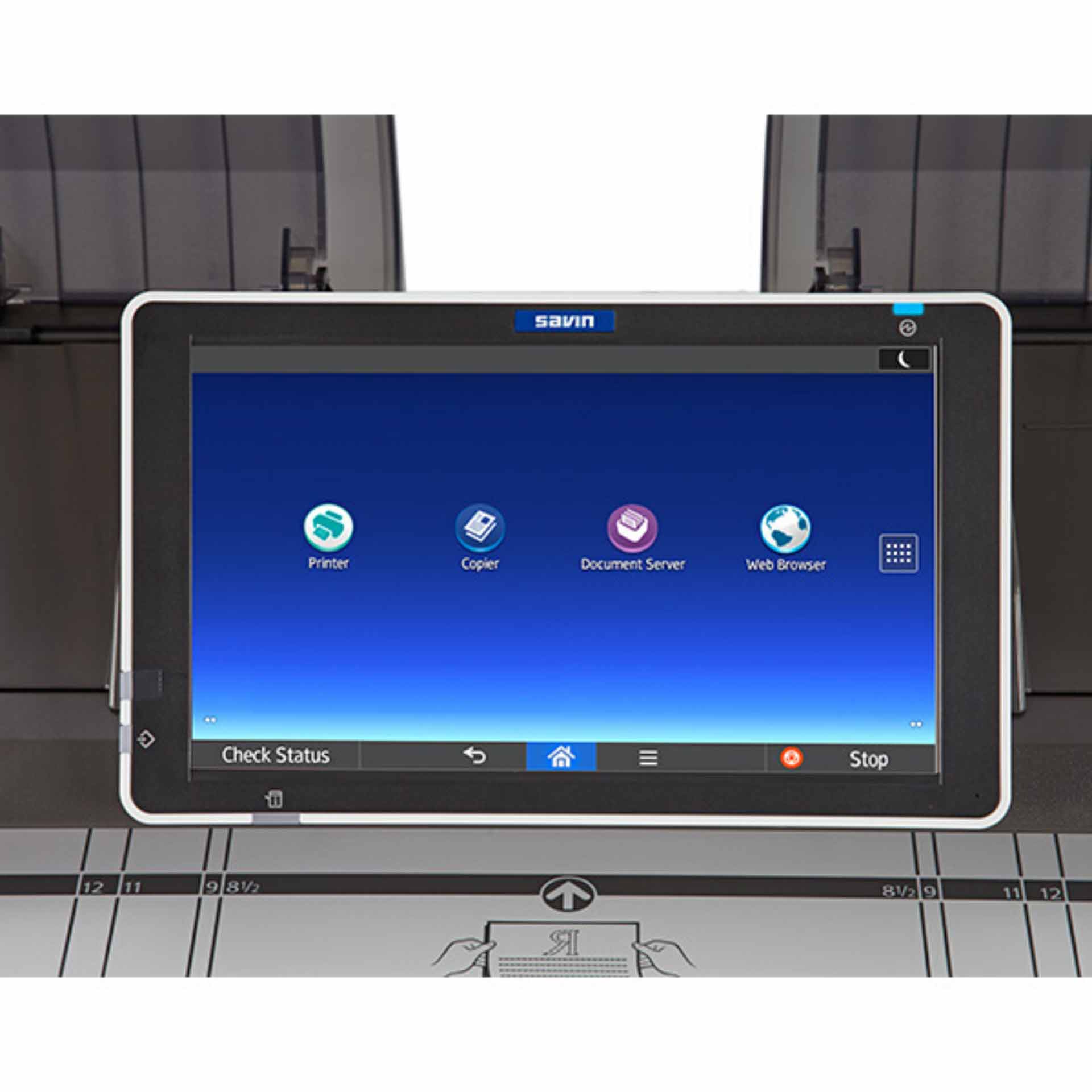

The 10.1" Smart Operation Panel offers a true tablet-like experience. Featuring a full-color immersive display, the panel tilts freely from 0° to 55° for easy viewing. Tap into cloud-based applications to streamline complex tasks. Use apps and customize shortcut icons to perform common functions.

Make your Work Count

Do more and refine your workflows with the right tools and technology.

Pack more Capabilities into a Smaller Footprint

Get more from your device with the MP CW2201SP large format multifunction printer. Support for popular wide-format file formats, including RP-GL/GL2 and RTIFF, helps your team communicate more efficiently. A range of PDF support options, such as Secure PDF, PDF-A, Searchable PDF and PDF Batch Print/PDF Direct Print, offer more ways to keep critical information moving. Draw on multi-access memory during printing, copying or scanning to execute jobs quickly.

Get Quick, Accurate Data Capture and Sharing

Scan at speeds up to 3.14 inches per second (ips) in black & white and up to 1.05 ips in color. Use Network TWAIN scanning to increase resolution up to 2400 dpi. Achieve true document mobility with powerful Scan-to functionalities to Email/Folder/FTP/URL/HDD (Document Server) from the control panel, or scan directly to a SD card or USB drive. OCR capabilities allow you to scan and create searchable documents.

RICOH Intelligent Support is within your grasp*

Produce what the Project Demands

From architectural drawings and product renderings to oversized color signage, the RICOH MP CW2201SP offers the right combination of image quality and capabilities to position you for success. Print and share the critical applications you depend on to convey the essential details that keep your project on track.

Data Protection that Lets you Work Creatively and Securely

Standard HDD Encryption encodes documents stored on the hard drive, safeguarding files even if the hard drive is removed, data Overwrite Security System (DOSS) automatically overwrites the area of the hard drive used for image processing. User and Administrative Authentication options help ensure only those granted access to your system can use it and optional NFC card authorization can be added for walk-up users while PDF Encryption protects documents from being intercepted and altered.

Optimize Productivity for users and your IT staff

Web Image Monitor lets users view documents, cancel jobs and check supply levels right from their desktop. The optional @Remote service enables automation of meter readings, ink alerts, device status updates and service calls. Smart Device Monitor is a PC-based software for IT staff to view system status, consumable levels and configuration settings.

General Specifications

Configuration	Console
Copying/Printing Process	On-demand Piezo Inkjet System (pigment-based ink) and Pigment-based ink (All 4 colors)
Paper Source(MHz)	Standard Roll Feeder and Optional 2nd Feeder
First Copy Time from Standby Mode	A0 SEF: (B&W) High Speed Copy: 51 sec.; Standard: 71 sec.; (Full Color) High Speed Copy: 81 sec.; Standard: 155 sec.;A1 LEF: (B&W) High Speed Copy: 29 sec.; Standard: 41sec. (Full Color) High Speed Copy: 53 sec; Standard: 84 sec.
Resolution	Up to 1200 x 1200 dpi
Zoom	25% to 400% (1% increments)
Multiple Copies	1 to 99
Cutting Method	Preset Size Cut, Synchronized Cut, Variable Cut
Memory Capacity	4GB
Hard Disk Drive	320 GB (shared with copier/printer/scanner)
Original Feed	Sheet
Original Set Position	Center
Original/Copy/Scan Size	Maximum: 36" x 590" (914 - 15,000mm) Minimum: 8.5" x 8.5" (210 - 210mm)
Original Paper Width	Inches: 8.5"/ 9" / 11" / 12" / 17" /18" / 22" / 24" / 30" / 34" / 36" Metric (mm): 210 / 257 / 297 / 364 / 420 / 440 / 490 / 515 / 594 /610 / 620 / 625/ 660/ 680 / 707 / 728 / 800 / 841 / 880/ 914.4
Original Scan Size	Maximum: 36" x 590" (914 - 15,000mm), Minimum: 8.5" x 8.5" (210 - 210mm)
Original Paper Weight	Paper Feed Guarantee: 0.035 - 1.0mm, Image Quality Guarantee: 0.090 - 0.2 mm (64-190 gsm)
Output Paper Size	Inches: Maximum Roll Feeder - Width: 36", Length: 590" ; Maximum Bypass - Width 36", Length: 78.7" Minimum - Width 11", Length: 8.27" Metric: Maximum Roll Feeder - Width: 914.4 mm, Length:15,000mm; Maximum Bypass - Width 914.4 mm, Length: 2,000mm
Output Paper Weight	Roll Paper: 0.068-0.2 mm (51-200 g/m2), Cut Sheet: 0.068-0.4 mm (51-220 g/m2)
Roll Paper Width	Inches: 11" / 12" / 13.5" / 15" / 17" /18" / 22" / 24" / 30" / 34" / 36" Metric (mm): 297 / 364 / 420 / 440 / 490 /515 / 594 /610 / 620 / 625 / 660 / 680 / 707 / 728 / 800/ 841 / 880/ 914.4
Copying Speed	A1, LEF: (B/W) High Speed Copy: 3.8 cpm; Standard: 2.0 cpm (Color) High Speed Copy: 2.1 cpm; Standard:1.2 cpm A0, SEF: (B/W) High Speed Copy: 1.9 cpm; Standard: 1.1 cpm (Color) High Speed Copy: 1.1 cpm; Standard: 0.6 cpm
Reproduction Ratio	Metric: 25%, 35.4%, 50%, 70.7%, 141.4%, 200%, 282.8%, 400% Engineer (inch): 25%, 33.3%, 50%, 64.7%, 129.4%, 200%, 258.8%, 400% Architecture: 25%, 33.3%, 50%, 66.7%, 133.3%, 200%, 266.7%, 400%
Paper Feeding Capacity	1st Roll and Optional 2nd Roll, One Roll Paper each: Width: 8.5" - 36" (279.4-914 mm), Maximum Length: 5,905"/492² (150,000 mm), Maximum Diameter: 6.7" (176 mm) Bypass: One Sheet
Paper Output Capacity	10 Sheets (Plain paper), 2" core roll cannot stack due to small curvature factor
Power Source	120 - 127V, 15A
Max Power Consumption	Less than 180W
Dimensions W x D x H	54.5" x 26.6" x 48" (1,384 x 675 x 1,219mm)
Weight	265 lbs. (120 kg)

Printer Specifications

Controller Board	Embedded
CPU	Celeron-M 1.0 GHz
Print Speed	A1 LEF: (B/W) - 3.8 ppm (Color) - 2.1 ppm A0 SEF: (B/W) - 1.9 ppm (Color) - 1.1 ppm
Print Resolution	Speed Priority (Drawing): 600 x 300 dpi Speed Priority: 600 x 600 dpi Standard: 600 x 600 dpi Quality Priority: 600 x 600 dpi Quality Priority Mode for only CoatedPaper, Film (Matted) and Special paper: 1200 x 1200 dpi
Print Drivers	Adobe PostScript3, HDI
Supported File Formats	Post Script 3, HP-GL, HP-GL2; European 136 fonts
Ink Save Mode	Yes - Save Ratio 50%
Network Interface	Standard: 10/100/1000BaseTX, USB 2.0, USB Host Optional: Wireless LAN IEEE802.11a/g/n
Network Protocol	TCP/IP (IP v4, IP v6)
Standard MIB	MIB-II (RFC1213), Host Resource (RFC1514), Printer MIB (RFC1759)
Private MIB	Original
Supported CAD version HDI Driver	HDI AutoCAD 2007 - 2016
One Direction	WDPrint One Direction
Unauthorized Copy Prevention	Yes (PS Driver)
WSD Printer	WDPrint WSD Printer
Color Matching	WDPrint Color Matching
POP	WDPrint POP
CUD	WDPrint CUD
Media to Print	Yes (JPEG/TIFF/PDF)

Scanner Specifications

Color Scan	Standard
Scan to Multimedia	Standard
Media to Print	Standard
Scan Speed	B/W: 600 dpi 80mm/s or 3.14 ips, 200 dpi 160mm/s or 6.3 ips Color: 600 dpi 26.7mm/s or 1.05 ips 200 dpi 40mm/s or 1.57
Scan Resolution	Up to 600 dpi; TWAIN: Up to 2400 dpi
Scan Mode	Monochrome: Text/Line Art (Default), Text Text/Phot, Grayscale Color: Text/Photo, Photo
Scan Detection	Auto Detect, Preset Size, Custom Size
RGB Support	Standard
Scan Protocols	Network: TCP/IP, Scan-to Email: SMTP, Scan-to Folder: SMB, FTP
Compression Method	*B/W: MH, MR, MMR, JBIG2 (Default: MMR) * PDF format only Color: JPEG (5 levels)**
Image Density	Auto Density Selection (effective only in B&W and Grayscale Scan Mode) Manual: 7 levels (effective in B&W/Grayscale and Full Color Scan Mode)
Image Rotation	WDScan Image Rotation
Mixed Size Mode	WDScan Mixed Size Mode
Scanning Element	CIS Color Scanner (Moving Original)

Download Drivers and Utilities

Download and install drivers, associated software and utilities for your device. This link can also be used to update your existing print driver

Device Software Manager

Easily and automatically install the latest drivers for your Ricoh product.

Universal Print Driver

Ricoh's Universal Print Driver provides a single intelligent advanced driver, which can be used across your fleet of Multifunction Products and Laser Printers.

Smart Home

Internal Shift Tray SH3070

ID: 416550

The Internal Shift Tray enables the system to output copies as sets in sequential order. Each time the copies of one set or a job are delivered, the next copy is shifted to separate each set or job.

Holds 250 sheets of 8.5" x 11" /A4 or smaller and holds 125 sheets of 8.5" x 14" or larger.

Supports Paper Sizes up to 12" x 18".

Weight: 3.1 lbs. (1.4 kg)

W x D x H (inches): 16.5 x 19.3 x 4.2

W x D x H (mm): 419 x 490 x 107

Notes:

Internal Shift Tray SH3070 cannot be installed with Internal Finisher SR3130, Finisher SR3210, Finisher SR3230, Booklet Finisher SR3220, Booklet Finisher SR3240, or any related options.

Punch Unit PU3050 NA

ID: 416609

Optional hole punching for the Finisher SR3210 or Booklet Finisher SR3220.

Supports Paper Sizes up to 11" x 17".

Notes:

1. Finisher SR3210 or Booklet Finisher SR3220 is required to for this option.

2. Punch Unit PU3050NA cannot be installed with the Internal Finisher SR3130 or Internal Finisher SR3180.

Punch Unit PU3060

ID: 416612

Optional hole punching unit for Finisher SR3230, Booklet Finisher SR3240, Finisher SR4120 or Booklet Finisher SR4130.

Notes:

1. One of the following finishers is required to add this option: Finisher SR3230, Booklet Finisher SR3240, Finisher SR4120 or Booklet Finisher SR4130.

2. This option cannot be installed with Finisher SR4080.

Punch Unit PU3040 NA

ID: 416615

Optional hole punching for the Internal Finisher SR3130.

Supports Paper Sizes up to 11" x 17".

Notes:

1. SR3130 is required to add this option.

2. Punch Unit PU3040 NA cannot be installed with the Finisher SR3210, Finisher SR3230, Booklet Finisher SR3220, or Booklet Finisher SR3240.

Finisher SR3210

ID: 417483

1,000-sheet Finisher.

For offices that produce collated and stapled sets of documents, the SR3210 helps shorten production time. It offers 50-sheet, multi-position stapling, mixed sized stapling, optional hole-punching, and shift-sort collating, as well as a staple-less binding capability of up to 5 sheets.

Supports Paper Sizes up to 12" x 18".

Weight: 60 lbs. (27 kg)

W x D x H (inches): 22.2 x 24.4 x 37.8

W x D x H (mm): 564 x 620 x 960

Notes:

1. Bridge Unit BU3070 is required to add this option.

2. Finisher SR3210 cannot be installed with these options: Internal Shift Tray SH3070, Internal Finisher SR3130, Finisher SR3230, Booklet Finisher SR3220, Booklet Finisher SR3240, or any related options.

Booklet Finisher SR3220

ID: 417484

1,000-sheet Booklet Finisher.

Allows documents to be professionally finished as paginated, saddle-stitched booklets. It provides three destinations for output, and offers optional hole-punching. Ideal for the production of program guides, instruction sheets, newsletters, and meeting agendas.

Supports Paper Sizes up to 12" x 18".

Weight: 87.3 lbs. (40 kg)

W x D x H (inches): 22.2 x 24.4 x 37.8

W x D x H (mm): 564 x 620 x 960

Notes:

1. The Bridge Unit BU3070 is required to add this option.

2. Booklet Finisher SR3220 cannot be installed with these options: Internal Shift Tray SH3070, Internal Finisher SR3130, Finisher SR3210, Finisher SR3230, or any related options.

Finisher SR3230

ID: 417487

3,000-sheet Finisher.

For offices that produce collated and stapled sets of documents, the SR3230 helps shorten production time. It offers 50-sheet, multi-position stapling, mixed sized stapling, optional hole-punching, and shift-sort collating.

Supports Paper Sizes up to 12" x 18".

Weight: 74 lbs. (33.5 kg)

W x D x H (inches): 25.9 x 24.1 x 37.8

W x D x H (mm): 658 x 612 x 960

Notes:

1. Bridge Unit BU3070 is required to add this option.

2. Finisher SR3230 cannot be installed with these options: Internal Shift Tray SH3070, Internal Finisher SR3130, Finisher SR3210, Booklet Finisher SR3220, Booklet Finisher SR3240, or any related options.

Booklet Finisher SR3240

ID: 417488

2,000-sheet Booklet Finisher.

Allows documents to be professionally finished as paginated, saddle-stitched booklets. It provides three destinations for output and offers optional hole-punching. Ideal for the production of program guides, instruction sheets, newsletters, and meeting agendas.

Supports Paper Sizes up to 12" x 18".

Weight: 116 lbs. (52.5 kg)

W x D x H (inches): 25.9 x 24.1 x 37.8

W x D x H (mm): 658 x 612 x 960

Notes:

1. Bridge Unit BU3070 is required to add this option.

2. Booklet Finisher SR3240 cannot be installed with these options: Internal Shift Tray SH3070, Internal Finisher SR3130, Finisher SR3210, Finisher SR3230, Booklet Finisher SR3220, or any related options.

One-Bin Tray BN3110

ID: 417585

Provides an additional output tray above the standard Internal Tray or optional Bridge Unit/Internal Shift Tray/Internal Finisher.

Holds 125 sheets.

Allows user to separate print/fax output from copy.

Supports paper sizes up to 11" x 17".

Weight: 3.1 lbs. (1.4 kg)

W × D × H (inches): 17.5 × 17.7 × 5.9

W × D × H (mm): 445 × 450 × 150

Bridge Unit BU3070

ID: 417587

A required accessory when the main unit is configured with an external finisher. The Bridge Unit transports pages from the standard exit area into a Finisher for online stapling or hole-punching.

Notes:

One of the following finishers is required to add this option: Finisher SR3210, Finisher SR3230, Booklet Finisher SR3220, or Booklet Finisher SR3240.

Internal Finisher SR3130

ID: 417589

500-sheet Internal Finisher provides multi-position stapling and optional hole-punching.

Recommended for offices with limited floor space.

Supports Paper Sizes up to 12" x 18".

Weight: 28.2 lbs. (12.8 kg)

W × D × H (inches): 21.5 × 20.6 × 6.7

W × D × H (mm): 546 × 523 × 170

Notes:

Internal Finisher SR3130 cannot be installed with MP C6004ex, MP C6004ex TE, Internal Shift Tray SH3070, Internal Finisher SR3180, Finisher SR3210, Finisher SR3230, Booklet Finisher SR3220, Booklet Finisher SR3240, or any related options.

Paper Tray & Optional Accessories

Paper Feed Unit PB3240

ID: 408112

Provides an additional 1,100 sheets.

Paper Sizes up to 12" x 18".

Paper Weights up to 300 g/m².

Weight: 48.5 lbs. (22 kg)

W x D x H (inches): 23.1 x 27 x 9.7

W x D x H (mm): 587 x 686 x 246

Notes:

1. Paper Feed Unit PB3240 cannot be installed with Paper Feed Unit PB3250, Paper Feed Unit PB3260, Caster Table Type M3, or Cabinet Type F.

Paper Feed Unit PB3250

ID: 408114

Provides an additional 550 sheets.

Paper Sizes up to 12" x 18".

Paper Weights up to 300 g/m².

Weight: 24 lbs. (10.9 kg)

W x D x H (inches): 23.1 x 27 x 4.7

W x D x H (mm): 587 x 686 x 119

Notes:

1. Paper Feed Unit PB3250 cannot be installed with Cabinet Type F, Booklet Finisher SR3220 or any related options.

2. This option must be installed with Caster Table Type M3.

LCIT PB3260

ID: 408116

Provides an additional 2,000 sheets.

Paper Sizes up to 8.5" x 11"/A4.

Paper Weights up to 300 g/m².

Weight: 48.5 lbs. (22 kg)

W x D x H (inches): 23.1 x 27 x 9.7

W x D x H (mm): 587 x 686 x 246

Notes:

LCIT PB3260 cannot be installed with Paper Feed Unit PB3240, Paper Feed Unit PB3250, Caster Table Type M3, or Cabinet Type F.

LCIT RT3030

ID: 416548

Provides an additional 1,500 sheets.

Paper Sizes up to 8.5" x 11"/A4.

Paper Weights up to 80 lb. Bond/166 lb. Index (300 g/m²).

Weight: 21.6 lbs. (9.8 kg)

W x D x H (inches): 13.4 x 21.4 x 11.4

W x D x H (mm): 340 x 544 x 290

Notes:

1. LCIT RT3030 cannot be installed with any of these Paper Bank options: Paper Feed Unit PB3250, Caster Table Type M3, or Cabinet Type F.

2. LCIT RT3030 must be configured with either the Paper Feed Unit PB3240 or PB3260.

Caster Table Type M3

ID: 416737

The caster table must be added to the configuration when the PB3250 Paper Feed Unit is selected. It provides a platform with wheels to easily move the device.

Notes:

1. Paper Feed Unit PB3250 is required for this option.

2. Caster Table Type M3 can only be installed with Paper Feed Unit PB3250.

Print/Scan Options

Embedded HotSpot Option Type S

ID: 415620

Required to enable HotSpot printing. One year HotSpot printing subscription service.

OCR Unit Type M13

ID: 417428

This function embeds invisible text on scanned images of PDF and enables users to search PDF files by arbitrary keywords. Searchable PDF files can be sent to email, folders, and external media (USB/SD Card).

Banner Paper Guide Tray Type M19

ID: 417485

Recommended when printing on banner paper to avoid paper skew.

Supports Paper Sizes up to 12.8" x 49".

IEEE 802.11a/g/n Interface Unit Type M19

ID: 417493

This option allows you to connect the device to an IEEE 802.11 a/b/g/n wireless LAN.

Notes:

IEEE 802.11a/g/n Interface Unit Type M19 cannot be installed with IEEE 1284 Interface Board Type M19, File Format Converter Type M19, or Extended USB Board Type M19.

Imageable Area Extension Unit Type M19

ID: 417497

Allows customers to print crop marks for proofing SRA3/12.6" documents.

XPS Direct Print Option Type M19

ID: 417501

Allows for direct printing of XPS-type file formats.

Camera Direct Print Card Type M19

ID: 417507

Allows users to connect a PictBridge-compatible digital camera directly to the MFP, enabling the printing of photos without a computer.

Notes:

Camera Direct Print Card Type M19 cannot be installed with Color Controller E-23C or any related options.

File Format Converter Type M19

ID: 417508

Required to convert formats and drag to desktop documents stored via Copy or Print mode.

Notes:

File Format Converter Type M19 cannot be installed with the following options: IEEE 1284 Interface Board Type M19, IEEE 802.11a/g/n Interface Unit Type M19, or Extended USB Board Type M19.

*Exception - The File Format Converter Type M19 can be installed with the following options on the MP C4504ex or MP C6004ex models: IEEE 1284 Interface Board Type M19, IEEE 802.11a/g/n Interface Unit Type M19, or Extended USB Board Type M19.

IPDS Unit Type M20

ID: 417524

Intelligent Printer Data Stream (IPDS). As a "genuine" IPDS solution built on original IBM source code, our IPDS option provides more accurate interpretation of IPDS data. That means less errors and faster file processing than emulations. Plus, as an IBM partner your customers can be assured of fast problem resolution and timely upgrades due to the close relationship between IBM and Ricoh.

Notes:

1. Memory Unit Type M19 4GB is required to add this option.

2. IPDS Unit Type M20 cannot be installed with Color Controller E-23C or any related options.

Extended USB Board Type M19

ID: 417566

Required for printing from USB Type B port.

Notes:

Extended USB Board Type M19 cannot be installed with IEEE 1284 Interface Board Type M19, IEEE 802.11a/g/n Interface Unit Type M19, or File Format Converter Type M19.

IEEE 1284 Interface Board Type M19

ID: 417596

For environments that require parallel connectivity.

Allows device connection with legacy computer equipment.

Notes:

IEEE 1284 Interface Board Type M19 cannot be installed with IEEE 802.11a/g/n Interface Unit Type M19, File Format Converter Type M19, or Extended USB Board Type M19.

Postscript3 Unit Type M33

ID: 418055

Unit ships with standard Postscript3 emulation and PDF Direct Print. This option is available for customers who require True Adobe workflows like Photoshop, Illustrator and PDF/X as well as additional font support. When enabled on the MFP, the standard PostScript3/PDF Direct Print emulation will be disabled.

USB Device Server Option Type M19A

ID: 418105

An interface board for adding an extra Ethernet port. If you install the USB Device Server Option, you can connect two Ethernet cables simultaneously: one to the machine's Gigabit Ethernet port and one to the Gigabit Ethernet port of USB Device Server Option. An IP address can be assigned to each connection and you can use one machine to print from different network segments.

Notes:

USB Device Server Option Type M19A cannot be installed with IEEE 1284 Interface Board Type M19, IEEE 802.11a/g/n Interface Unit Type M19, File Format Converter Type M19, or Extended USB Board Type M19.

Memory Unit Type M19 4 GB

ID: MX417498RA

Expands RAM from 2 to 4 GB.

Notes:

Memory Unit Type M19 4 GB cannot be installed with Color Controller E-23C or any related options.

Fiery Options
